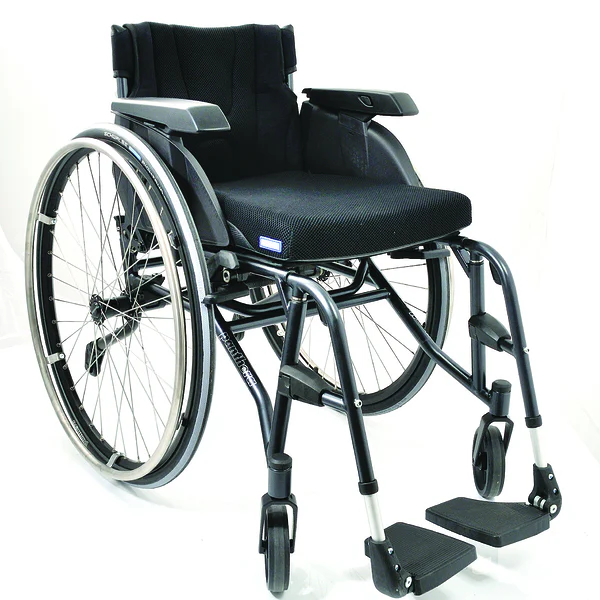

Panthera S3 Swing

From £2,975.00 – £3,645.00

  • VAT exempt
  • Free nationwide assessments, delivery and set-up
Clear

Adapts to the active life you lead

The Panthera S3 Swing comes in 4 models. Offering the same comfort and low transport weight as the Panthera S3 series, the S3 Swing provides the added flexibility of a swing-away footrest for easier transfers.

SKU: N/A Categories: , , Tags: , , , ,
PantheraPermobil_logo

Easy to manoeuvre

Adjusts for comfort

Swing-away for easier transfers

The S3 Swing is also available in a shorter version (-50 mm seat depth).

The extended range includes models with a flat seat angle and extended chassis (+50 mm).

Powerful features

Made to manoeuvre

The Panthera S3 Swing series models have low-weight, stable, rigid frames and castors that adjust to hard and soft surfaces, ensuring easy manoeuvrability for active users.

Low weight and robust

With a chassis made from chrome molybdenum (chrome moly steel), also used in the automotive and aerospace industries, both Panthera S3 Swing series models are solid and low weight, starting from 4.4kg.

Adjusts for you

Adjustable features, such as seating angle, backrest and accessories, ensure the Panthera S3 Swing can be adapted to give confidence in seating and driving positions, alongside comfort and support.

Extended Range

S3 Swing Low 0°

  •  The Panthera S3 Swing Low 0° has a flat seat angle.
  • Front and rear seat height is 39 cm with 24″ drive wheels.
  • Alternatively, 36.5 cm with 22″ drive wheels.
  • Otherwise, the same design as the S3 Swing

S3 Swing Long

  • The Panthera S3 Swing Long is extended 50 mm compared to the S3 Swing.
  • Otherwise, it has the same design as the S3 Swing.

Brand

Panthera

Permobil

Permobil_logo

Technical Specifications

S3 SwingS3 Swing ShortS3 Swing Low 0°S3 Swing Long
Seat Width14" - 20" | 36 - 50 cm13" - 15" | 33 - 39 cm14" - 20" | 36 - 50 cm14" - 20" | 36 - 50 cm
Seat Depth16" | 40 cm14" | 35 cm 14"- 16" | 35 - 40 cm14"- 16" | 37.5 - 45 cm
Seat height18" | 45 cm18.5" | 47 cm15" | 39 cm18" | 45 cm
Seat angle4°4°4°4°
Total length31" - 35.5" | 78 - 90 cm34.5" | 88 cm31" - 35.5" | 78 - 90 cm32.5" - 37.5" | 83 - 95 cm
Total widthSeat width + 8" | 21 cmSeat width + 8" | 21 cmSeat width + 8" | 21 cmSeat width + 8" | 21 cm
Front frame angle105°105°105°105°
Backrest height8" - 18" | 20 - 45 cm8" - 18" | 20 - 45 cm8" - 18" | 20 - 45 cm8" - 18" | 20 - 45 cm
Backrest angle13°- (-8°)13°- (-8°)13°- (-8°)13°- (-8°)
Footplate distance15" - 18" | 38 - 46 cm15" - 18" | 38 - 46 cm15" - 18" | 38 - 46 cm15" - 18" | 38 - 46 cm
Camber2.2°
4°
8°		2.2°
4°
6°
8°		2.2°
4°
8°		2.2°
4°
8°
Weight
(Without rear wheels)		4.1 - 4.9 kg | 9 - 10.8 lbs4 - 4.1 kg | 8.8 - 9 lbs4.6 - 5.4 kg | 10 - 12 lbs4.9 - 5.7 kg | 10.8 - 12.6 lbs
Wheelchair weight9 - 10 kg | 20 - 22 lbs8.8 - 9 kg | 19.5 - 20 lbs9.4 - 10.2 kg | 20.7 - 22.5 lbs9.7 - 10.5 kg | 21 - 23 lbs
Maximum User Weight100 - 150 kg | 220 - 330 lbs100 kg | 220 lbs100 - 150 kg | 220 - 330 lbs100 - 150 kg | 220 - 330 lbs
Chassis materialChrome molybdenum tubingChrome molybdenum tubingChrome molybdenum tubingChrome molybdenum tubing
Upholstery materialPolyurethane covered polyesterPolyurethane covered polyesterPolyurethane covered polyesterPolyurethane covered polyester

Brochure

Download

Order Form

Download

User Manual

Download
